Angular 20 Migration: SSR Challenges & Resolutions with Vite, ESM, and Express 5

At Halodoc, our public website halodoc.com has long relied on Angular with Server-Side Rendering (SSR) — powered by a custom Express server — to deliver fast, SEO-friendly pages to millions of users. When Angular 20 arrived, it brought a wave of architectural changes that touched nearly every layer of our stack: the build tooling, the module system, the server runtime, and even how routes are extracted at compile time.

This blog is not a generic upgrade checklist. It is a real-world blueprint drawn directly from the challenges we hit, the errors we debugged, and the resolutions we shipped — so that the next team migrating a complex SSR monolith doesn't have to start from scratch.

At a Glance — What Changed & What Broke

Here's the summary of what changed and what we had to fix across the stack:

Architecture Overview — Before & After

Before Angular 20, our SSR pipeline looked like this: a Webpack-bundled Angular app producing dist/server/main.js (CommonJS), consumed by an Express 4 server using CommonEngine to render HTML. PM2 managed the process in cluster mode.

After Angular 20, the entire output and runtime contract changed. Here are both architectures side-by-side:

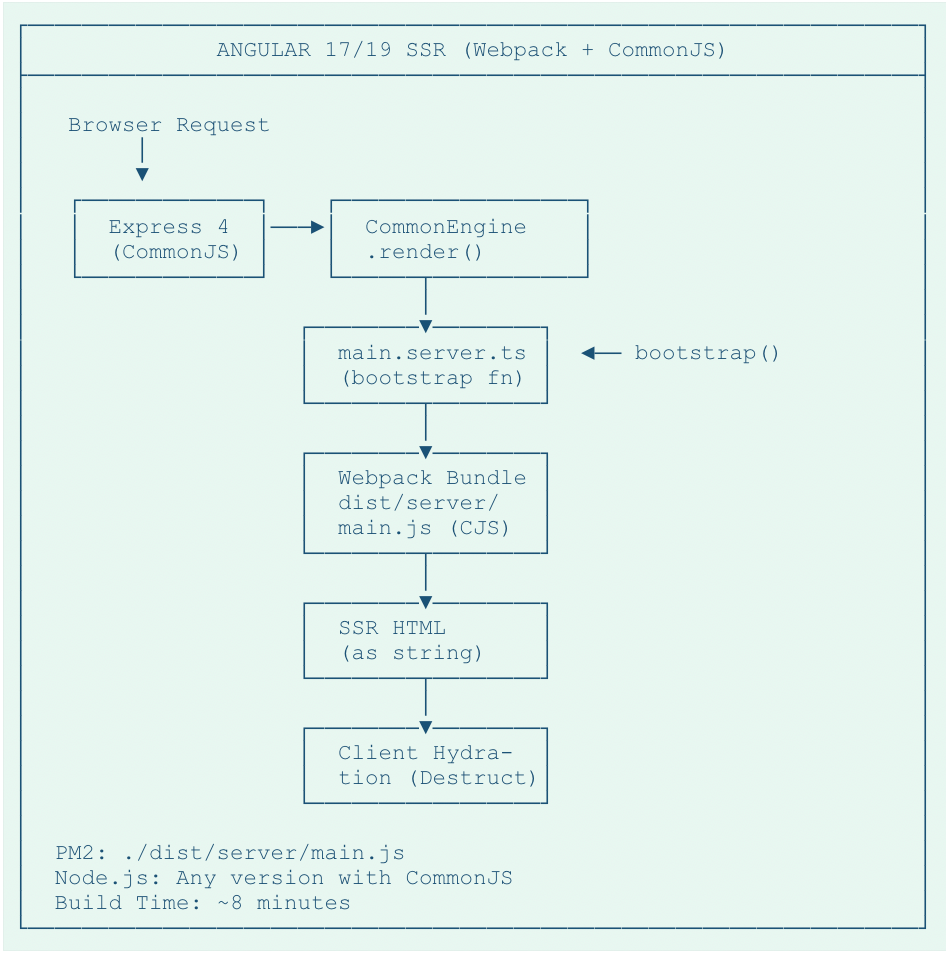

Before Migration — Angular 17/19 SSR Architecture

Figure 1: Angular 17/19 SSR architecture using Webpack, CommonJS, Express 4, and CommonEngine render() API.

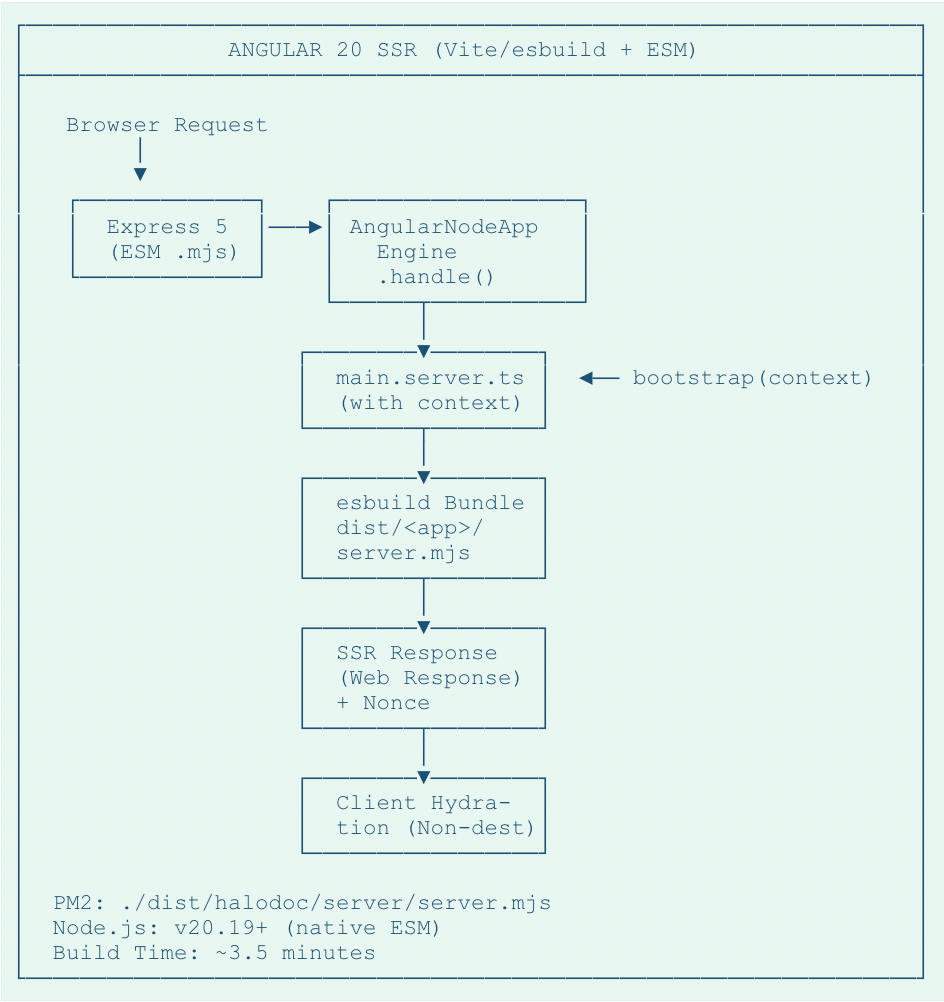

After Migration — Angular 20 SSR Architecture

Figure 2: Updated Angular 20 SSR architecture using Express 5, AngularNodeAppEngine, and an ESM server entrypoint with per-request context.

Key shift: The server entry point is now an ESM .mjs file, consumed by Express 5 via AngularNodeAppEngine, with per-request context injection.

Build Performance Gains

The migration to esbuild brought measurable improvements to our CI/CD pipeline:

• Production builds: Reduced from ~8 minutes (Webpack) to ~3.5 minutes (esbuild) — a 56% improvement
• Development startup: Cold start went from ~45 seconds to ~12 seconds with Vite's on-demand compilation
• Incremental rebuilds: Hot Module Replacement (HMR) now completes in < 200ms vs. 2-4 seconds previously

1. Build System Migration — Webpack → Vite + esbuild

What exactly changed?

• Dev server now runs on Vite instead of webpack-dev-server — different HMR behavior, faster cold starts, but incompatible flags like --disable-host-check were removed
• Bundle output: dist/server/main.js (CJS) became dist/<app>/server/server.mjs (ESM)
• Dependency resolution: esbuild resolves all imports eagerly — even conditional or dynamic ones
• HMR (Hot Module Replacement) mechanism is now Vite-native.

angular.json — Builder Configuration

{
  "projects": {
    "halodoc": {
      "architect": {
        "build": {
          "builder": "@angular/build:application",   // ← new builder
          "options": {
            "outputPath": { "base": "dist" },
            "browser": "src/main.ts",
            "externalDependencies": ["canvas", "path2d"]  // ← esbuild exclusions
          }
        }
      }
    }
  }
}

2. SSR Configuration — The Missing Metadata Problem

What was missing?

• No ssr block under build options
• No server entry pointing to main.server.ts
• No outputMode: "server" declaration
• No serve-ssr target for local dev

Complete SSR Configuration (angular.json)

"configurations": {
  "production": {
    "server": "src/main.server.ts",       // Angular server bootstrap
    "ssr": {
      "entry": "src/server.ts"            // Express server entry
    },
    "outputMode": "server",               // SSR mode (not static prerender)
    "prerender": {
      "discoverRoutes": false             // manual route control
    }
  },
  "development-ssr": {
    "server": "src/main.server.ts",
    "ssr": { "entry": "src/server.ts" },
    "outputMode": "server",
    "optimization": false,
    "sourceMap": true
  }
}

Key Configuration Pointers

• server → Angular's server bootstrap (main.server.ts)
• ssr.entry → Your Express server file (server.ts)
• outputMode: "server" → Enables live SSR rendering
• prerender.discoverRoutes: false → Disables auto route scanning

3. CommonJS → ESM — The Ripple Effect

Before vs After — Server Entry Point

// server.ts (CommonJS)
const express = require('express');

const { CommonEngine } =
  require('@angular/ssr/node');

// PM2 script path:
'./dist/server/main.js'

// server.ts (ESM)
import express from 'express';

import {
  AngularNodeAppEngine,
  createNodeRequestHandler
} from '@angular/ssr/node';

// PM2 script path:
'./dist/halodoc/server/server.mjs'

PM2 Configuration (ecosystem.prod.config.js)

module.exports = {
  apps: [{
    name: 'public-web-app',
    script: './dist/public-web-app/server/server.mjs',  // ← .mjs, not .js
    interpreter: 'node',
    node_args: '--max-old-space-size=12000',
    instances: 2,
    exec_mode: 'cluster'
  }]
};

4. Express 4 → Express 5 — Route Syntax Rewrite

Route Pattern Changes

// Express 4 catch-all
server.get('*', (req, res) => {
  // SSR handler
});

// Wildcard prefix
server.get('/homelab/*', (req, res) => {
  // handler
});

// Express 5 — middleware SSR
server.use(async (req, res, next) => {
  // SSR handler
});

// Named param capture
server.get('/homelab/:captured(*)', (req, res) => {
  res.redirect(
    301,
    '/homecare/' + req.params.captured
  );
});

Key Express 5 Pattern Changes

• Use /{*path} for catch-all routes instead of *.
• Use :param(*) for wildcard parameter captures instead of **.
• Prefer server.use() middleware over catch-all routes for SSR handlers.
• Top-level await is now supported in middleware functions.

Why it matters: Getting these patterns wrong can silently break redirects or cause 404s only on specific wildcards, so we tested route matching extensively in staging before rollout.

5. Dependency Compatibility — Three Gotchas

Most of our time here went into small, scattered fixes rather than one big blocker—this is where having good logs and TypeScript errors mattered.

5a. ngx-slick-carousel — Missing jQuery Types

Resolution: Install @types/jquery explicitly and ensure it is included in tsconfig types, so ngx-slick-carousel can compile correctly under Angular 20's stricter type setup.

5b. Canvas Native Module — esbuild Eagerness

Resolution: Tell esbuild to externalize these modules:

// angular.json → build → options
"externalDependencies": ["canvas", "path2d"]
// This tells esbuild to skip bundling these entirely.

5c. RxJS 6.x → 7.8+ — ESM Directory Imports

Resolution: Upgrade to RxJS 7.8+ (Angular 20's minimum). Additionally, some deprecated operators were removed — audit your catchError, switchMap usage during the upgrade.

6. CommonEngine → AngularNodeAppEngine

Before vs After — SSR Engine Usage

// Old: CommonEngine
const engine = new CommonEngine();
engine.render({
  bootstrap,
  documentFilePath: indexHtml,
  url: req.url,
  providers: [...]
}).then(html => res.send(html));

// New: AngularNodeAppEngine
const app = new AngularNodeAppEngine();

const response = await app.handle(
  req,
  {
    providers: [
      { provide: REQUEST, useValue: req },
      { provide: RESPONSE, useValue: res }
    ]
  }
);

// response is a web Response

Note: Because handle() returns a Web Response object, we can now apply cross-cutting concerns (like CSP nonce injection and header manipulation) in one place before sending the response.

main.server.ts — Bootstrap Context

// Angular 20: bootstrap now receives context
const bootstrap = (context?: any) =>
  bootstrapApplication(AppComponent, config, context);

export default bootstrap;

// This is how AngularNodeAppEngine passes
// REQUEST, RESPONSE providers per request.

7. Strict Package Export Enforcement

The Problem

// Breaks in Angular 20
import { MessageComponent }
  from '@halodoc/package/lib/Package/components/message-component';

// Correct way — import from package root
import { MessageComponent } from '@halodoc/Package';

Fix — Expose via public-api.ts

// libs/package/public-api.ts
export * from './lib/package/components/message-component;

Then rebuild and republish the library. All consuming apps switch to the root import. This also improves tree-shaking and maintains proper versioning contracts.

8. Route Extraction Errors — Catch Block Strictness

Before vs After — Error Handling

//  Causes build failure
try {
  // code
} catch {          // no variable!
  // silent
}

this.http.get('/api').pipe(
  catchError(() => of(null))
);

//  Build succeeds
try {
  // code
} catch (error: Error) {
  console.error(error);
}

this.http.get('/api').pipe(
  catchError((error: Error) => {
    console.error(error);
    return of(null);
  })
);

Rule of Thumb

• Always declare an error variable in catch
• Type it as Error or unknown — never omit
• Use the variable (even just for logging) — the optimizer checks for it

9. CSP Nonce Injection — Security Under SSR

Because our public site is internet-facing and uses a strict Content Security Policy (CSP), preserving nonce-based script tags across the new SSR stack was non-negotiable.

With the new AngularNodeAppEngine returning a Web Response object instead of a raw HTML string, we had to adjust how we inject nonces into <script> tags for Content Security Policy.

Nonce Injection Utility

function injectNonceIntoScripts(html: string, nonce: string): string {
  if (!nonce) return html;
  return html.replace(
    /<script(?![^>]*\snonce=)/gi,
    '<script nonce="' + nonce + '"'
  );
}

// In the SSR middleware:
const response = await angularApp.handle(req, ctx);
if (response?.headers.get('content-type')?.includes('text/html')) {
  const html = await response.text();
  res.status(response.status).send(
    injectNonceIntoScripts(html, res.locals.nonce)
  );
}

Verification: We verified nonce injection manually in staging by inspecting rendered HTML and checking that all inline script tags carried the expected nonce and passed our CSP headers.

10. Prometheus Monitoring — Singleton Registry Pattern

The Fix — Global Singleton

// src/server/prometheus.ts
const globalRef: any = globalThis;

if (!globalRef.__PROMETHEUS_REGISTRY__) {
  globalRef.__PROMETHEUS_REGISTRY__ = new Registry();
}

export function setupPrometheus(app: Express) {
  if (globalRef.__PROMETHEUS_INITIALIZED__) return;
  globalRef.__PROMETHEUS_INITIALIZED__ = true;

  app.use(promMid({
    metricsPath: '/metrics_prom',
    registry: globalRef.__PROMETHEUS_REGISTRY__,
    prefix: 'website_',
    collectDefaultMetrics: false
  }));
}

This pattern is safe to call multiple times — only the first invocation registers metrics. Works with HMR, cluster mode, and SSR re-imports.

11. Missing Type Declarations — Custom .d.ts Files

Resolution — Declare Modules

// src/types/express-prometheus-middleware.d.ts
declare module 'express-prometheus-middleware' {
  const promMid: any;
  export default promMid;
}

// src/types/xhr2.d.ts
declare module 'xhr2' {
  const xhr2: any;
  export default xhr2;
}

Ensure tsconfig.app.json includes "**/*.ts" so these declaration files are picked up. Long-term: seek packages with proper types or contribute to DefinitelyTyped.

12. Removed Dev Server Flags

Updated package.json Scripts

{
  "scripts": {
    "start":     "ng serve --host 0.0.0.0 --port=4000",
    "dev":       "ng serve --configuration=development --port=4000",
    "dev:ssr":   "ng serve --configuration=development-ssr --port=4000"
  }
}

Migration Quick-Reference Checklist

Use this as a starting point for your own Angular 20 SSR migration runbook; adjust steps to match your CI/CD and hosting model.

Build & Runtime

1. Run ng update @angular/core@20 @angular/cli@20 — then do not trust it blindly. Manually verify angular.json.
2. Add the full SSR block (server, ssr.entry, outputMode) for every environment.
3. Switch PM2, Docker, and CI scripts to .mjs paths.
4. Migrate Express 4 → 5. Rewrite route patterns.
5. Replace CommonEngine with AngularNodeAppEngine.

Dependencies & Types

1. Upgrade RxJS to 7.8+. Fix removed operators.
2. Audit all deep package imports. Export via public-api.ts.
3. Add externalDependencies for native modules (canvas, path2d, etc.).

Security & Dev Experience

1. Fix every catch block — add a typed error variable.
2. Remove --disable-host-check from all npm scripts.
3. Run the full test suite. Check CSP nonce injection manually.

Conclusion

Angular 20's migration is not just a version bump; it is an architectural shift. The move to esbuild, ESM-first module resolution, and the new AngularNodeAppEngine touches the build pipeline, the server runtime, and the deployment config simultaneously.

The good news: once you understand the why behind each change, the fixes are straightforward. This blog is meant to be your shortcut through the debugging we already did. Bookmark the checklist, adapt the code examples to your project, and consider adding similar guardrails (CSP nonces, Prometheus patterns, strict typings) early in your migration instead of treating them as afterthoughts.
